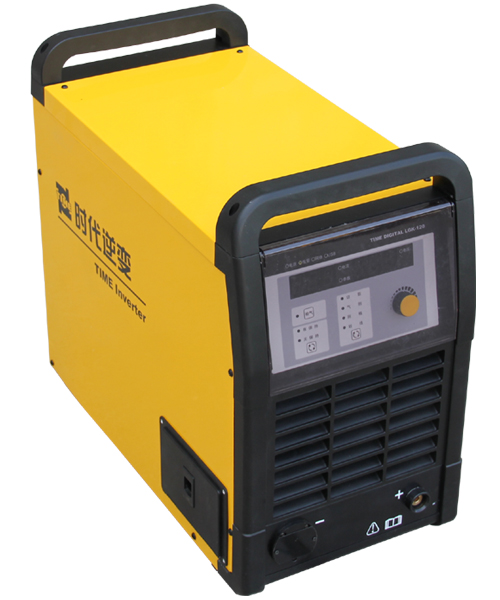

TIME Air plasma cutting machine TDL series

Feature code：

Whole digital control makes the machine with steady current, high concentration and high cutting quality. The max cutting through thickness of workpiece is 20% more than traditional familiar cutting machines.
The success rate of arc ignition by lengthened 30 M cutting torch is greater than 99%.
Mess cutting function makes cutting easily without frequent arc striking.
Marking before cutting is for precison cutting to avoid waste of the base metal.
Non-high frequency arc striking, no-high frequency interference.
Plasma gouging function to make cutting smooth and clean and avoid carbon carrying in seam caused by carbon arc gouging.

Model	TDL 600	TDL 1200
Rated input voltage (V)	AC380V±15％， 50/60Hz
Rated input current (A)	9.8	29.4
Rated output capacity（Duty cycle=60% & 100%）	60A/104V	120A/128V
Rated no-load voltage (V)	307±5%	320±5%
Duty cycle	60%
Range of output current (A)	20～60	30～120
Ignition current (A)	25	30
Max. cutting through thickness (mm)	35	50
Quality cutting thickness for carbon steel (mm)	20	35
Quality cutting thickness for stainless steel (mm)	15	30
Plasma piercing thickness (mm)	10	20
Net weight (Kg)	33	46
Dimensions（L×W×H）/ mm	592×290×503	650×326×567
